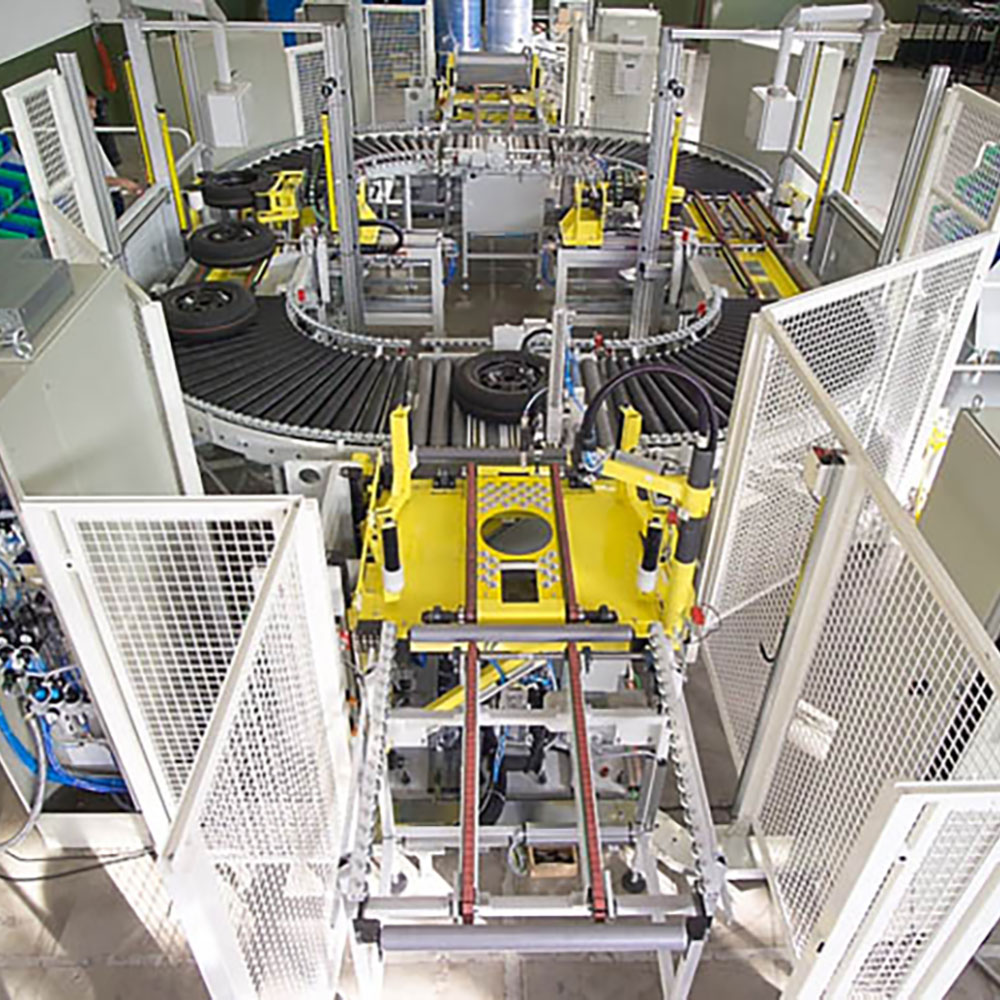

Balancing plant for car wheels with double horizontal correction station

On each one of these the correction is made in two steps:
– manual application of the correction weight to the outer wheel side;
– turning over and indexing of the wheel for fixing the correction weight to the inner side.
The wheel is then transferred to a second balancing station where the residual unbalance is checked and confirmed.

Approx overall dimensions:
Width: 7000 mm
Depth: 8000 mm
Height: 2200 mm
