Automatic, for brake drums

Field of application

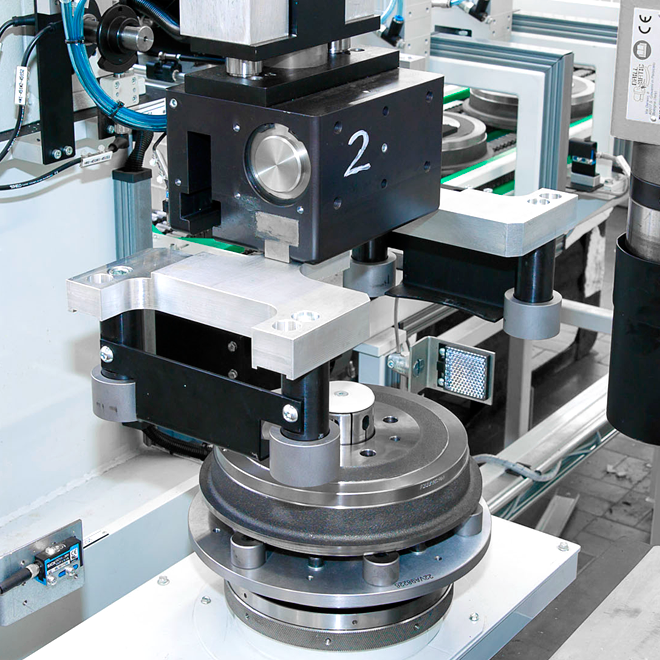

Automatic balancing system for drums; unbalance correction made by drilling unit with two controlled axes

The plant is equipped with:
– Part recognizing station.
– Equipped with an automatic two arms loader, input/output conveyors and scrap parts chute.
– Static unbalance correction obtained by a drilling unit with two controlled axes.
– Drilling depth measuring device.
– Control of the worn/broken drilling bit.

– High measuring precision accuracy
– High correction precision accuracy

Approx overall dimensions:
– Width: 3700 mm
– Depth: 3700 mm
– Height: 2000 mm
