Two stations, fully automatic
Field of application

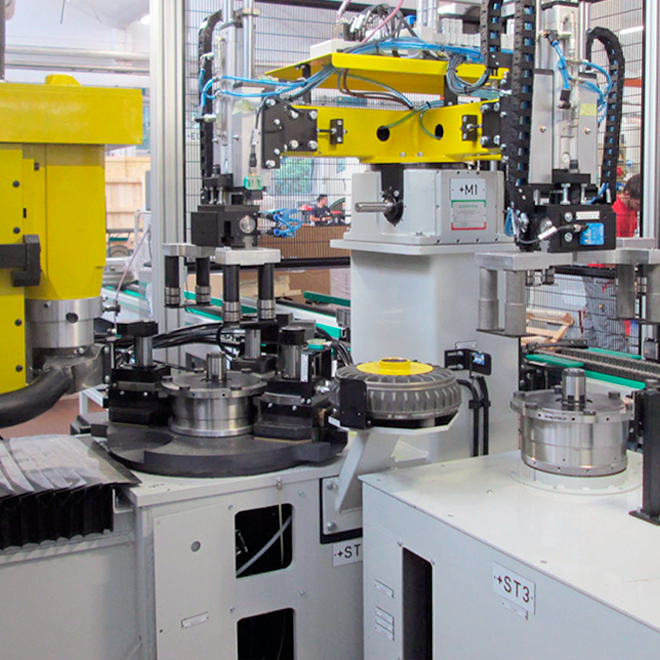

Two station fully automatic balancing system for brake discs.
Features
The balancing system is equipped with:
– Loading conveyor equipped with the part recognizing system;
– Unbalance measuring station;
– Stations for the correction and the control of the part unbalance. The correction is obtained by a milling machine with two controlled axes;
– Output conveyor for good and scrap parts;
– Automatic loader with three arms.
Approx overall dimensions:
– Width: 6395 mm
– Depth: 3920 mm
– Height: 2150 mm
