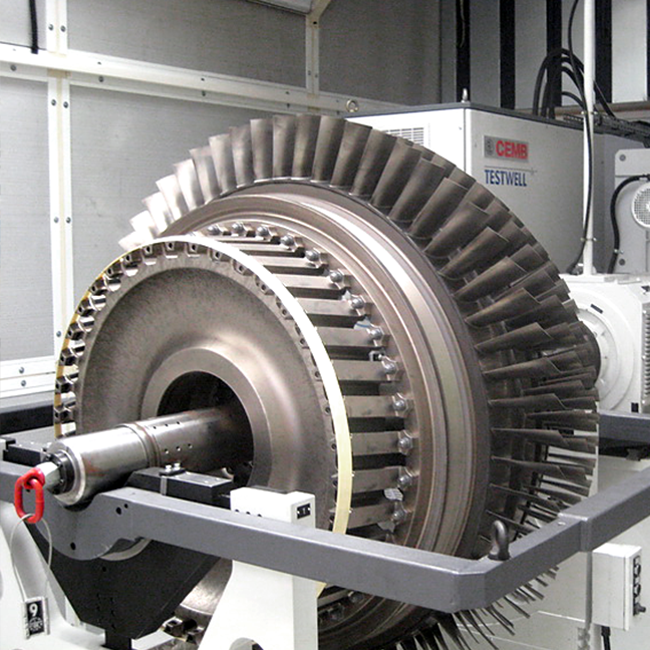

Unbalance measuring of aeronautical rotors

– Unbalance measuring of aeronautical rotors: weight up to 5000 Kg; Barrel type fixtures are included.
– Horizontal axis, hard bearing, balancing machine.
– The pedestals are completed with 13″ SAE saddles.
– Displaceable end drive system, powerful motor up to 250 KW.
– B11 touch screen measuring instrument completed with special AERO software for multi-plane balancing (2 to 12 planes).

Approx overall dimensions:
Width: 1800 mm
Depth: 6000 mm
Height: 2200 mm
