Explosion-proof vibration transmitter

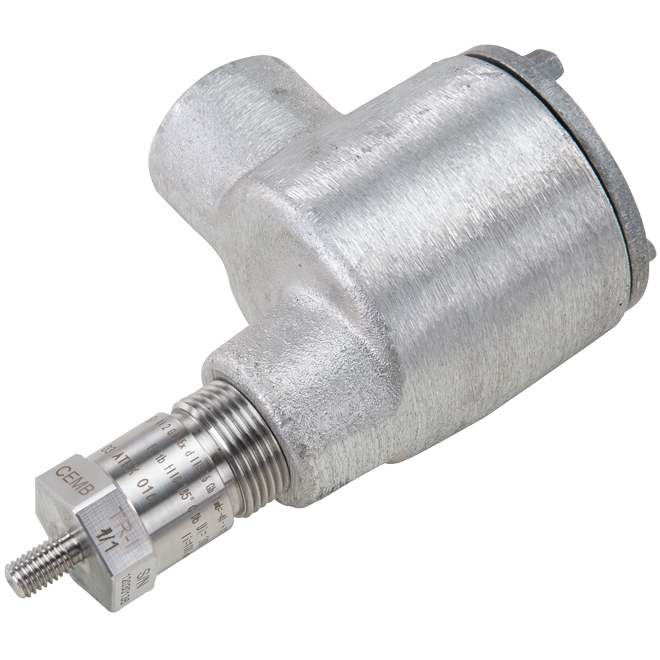

The integrated transmitter TR-I measures the absolute vibrations of any rotating machine support and it is able to interface directly in 2 wires technique (current loop 4 ÷ 20 mA) to an acquisition system. The Signal is proportional to vibration velocity or acceleration.

TR-I-ATEX is made of a stainless steel body AISI 316L with machine connection thread and it is supplied with a die-casted aluminium case for the terminal board with ¾” NPT female thread.

The transmitter is certified for classified area:

II 2GD Ex d IIC T6 Gb Ex tb IIIC T85°C Db
